Tgard 200 Series

Thermally Conductive Insulators

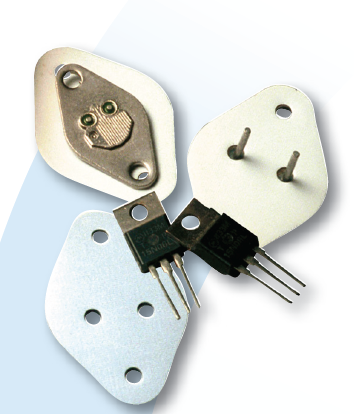

The Tgard 200 is a high performance interface pad. Consisting of a silicone/boron nitride composite, these fiberglass-reinforced pads are used when the lowest thermal resistance and highest dielectric strength are required



A high-tear, cut-through and puncture-resistant product, the Tgard™ 200 is tough and strong. Burrs cause no problems for the material and the pad will not dry out, crack or fail when pressured between mating parts.



The Tgard™ 200 is available in the following sizes:
0.010” (0.25 mm) die cut shapes only
0.020” (0.51 mm) sheets and die cut shapes
0.030” (0.75 mm) sheets and die cut shapes

Standard thicknesses: 0.010” (0.25 mm) die cut shapes only, 0.020” (0.51 mm), 0.030” (0.76 mm) Standard sheet sizes: 0.020” and 0.030”: 16” x 16” (406 mm x 406 mm) Individual die-cut shapes can be supplied. Pressure sensitive adhesive: Request no adhesive with “AO” suffix. Request adhesive on one side with “A1” suffix. Double-sided adhesive is not available. Reinforcement: TgardTM 200 sheets are fiberglass reinforced.
